Grade King Leveling Scrapers
Grade King Leveling Scrapers are designed for extreme duty applications that require your equipment to withstand the abuse provided by high horsepower tractors up to a maximum of 525 horsepower. All Grade King Series Leveling Scrapers are capable of towing various implements behind them such as compacting rollers, smooth drum rollers, or others depending upon our customers needs. Options available are a scarifier, a hydraulically lifted smooth drum roller, a laser mast, rear hydraulics, and an aggression bar for grading gravel roads. Weight racks are standard equipment allowing up to 48
100 lb. weights depending on the size of the machine. The Grade King Leveling Scraper is available in 10 foot, 12 foot, 14 foot, and 16 foot widths. The Grade King Leveling Scraper performs excellently at speeds of 8 MPH or greater.
CLICK HERE TO VIEW A DEMO OF THE GRADE KING SCRAPER WITH A 48-48 ROLL-N-GO
| Overall length | 17 feet 6 inches |
| Main Frame Axles | Outer Axle – 5 ˝” O.D. x ˝” thick |
| Inner Axle | ˝” thick with O’ring seals to contain grease |
| Width | 10’, 12’, 14’. 16’ or larger |
| Steel | All steel equivalent to Grade 50 or greater |
| Tongue | 8” x 10” x ˝” thick “removable” |
| Moldboard | 7/8” thick,1 piece design |
| Blade Options | 8” Grader blade standard equipment equipment will accommodate carbide tooth blade or other manufacturer’s equivalents |
| Hitches | Adjustable front and rear-designed to offer hammer strap or clevis option simply by flipping over |
| Wheel Assembly | Foldable to accommodate a haulable width of 8’6” |
| Tires & Axles & Bearings | 12.5 x 16” on 8 hole wheels, 2 7/8” diameter spindle heavy duty bearings and hubs |
| Suspension | Smooth ride Double D Bogie pivoting on heavy duty 2 1/4” – 4 bolt flange, cast iron bearings |
| Cylinders | Phasing Cylinders standard equipment – rated 3,000 PSI with I.S.O. O’ring fittings. |
| Weight Rack | Standard Equipment – will accommodate optional 36-100 lb Double D weights or 25 lb per inch of cutting edge depending upon size of machine. Max. 48 weights on 16 ft. Caterpillar or John Deere weight racks optional Side Wear Plates Adjustable 5/8” AR 400 grade steel |
| Shipping Weight | Approximately 8000 # less attachments on 12 ft models |

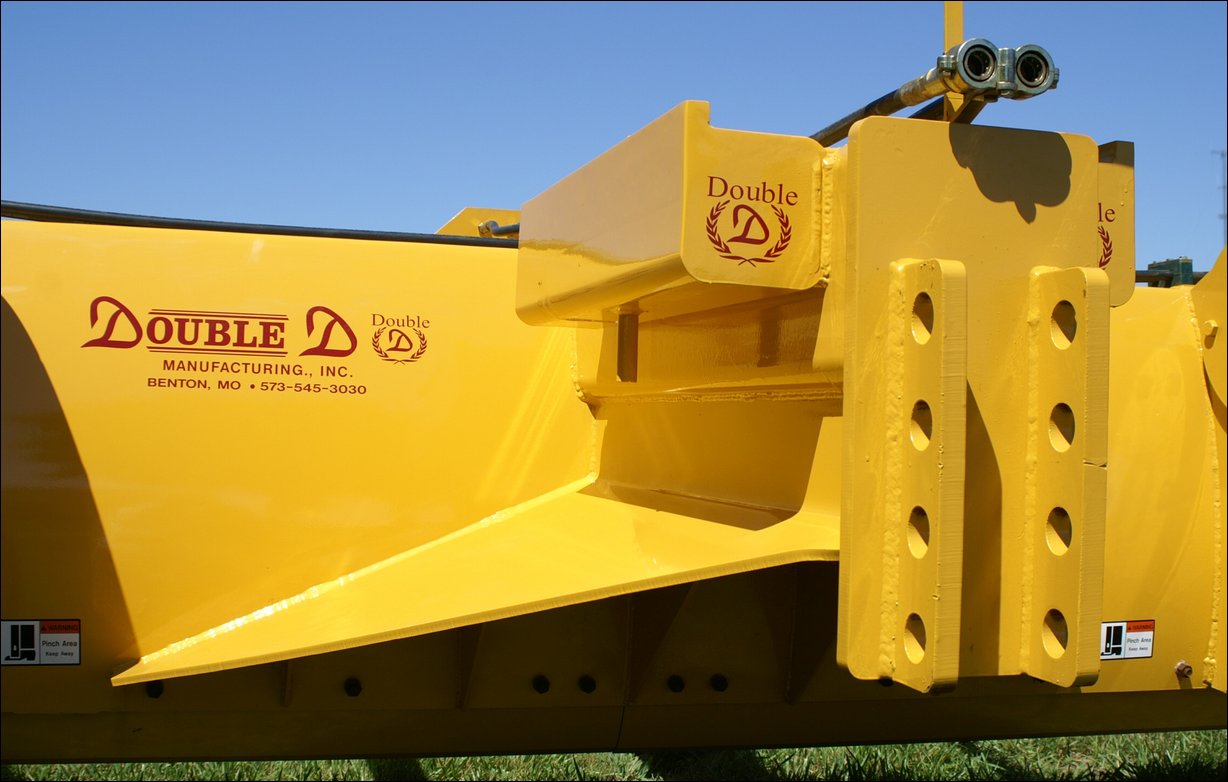

Please click any of the pictures below to see a larger version.
(Please note that some pictures show accessories equipped.)
